FC300-12

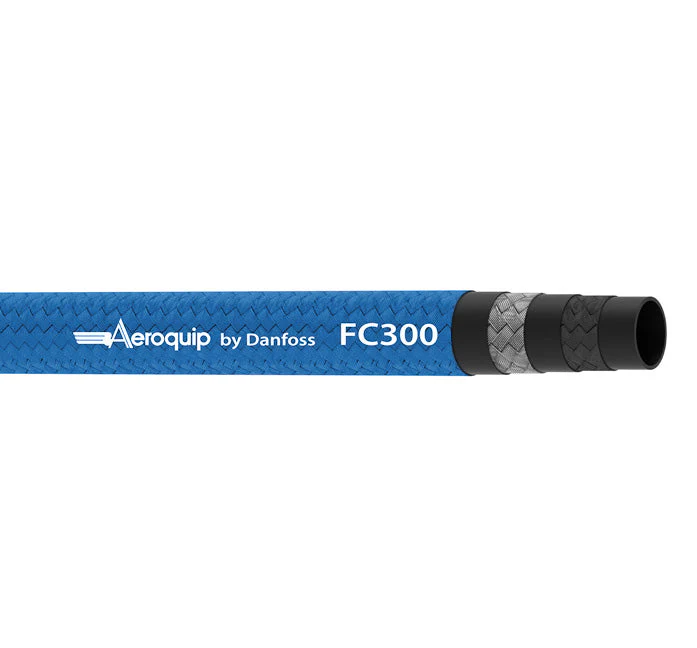

The Eaton Aeroquip FC300-12 1 WR. Braid AQP hose is designed for hydraulics handling petroleum-based fluids, air, gasoline, fuel, lubricating oils, and other industrial fluids. Its AQP elastomer tube, along with a blue polyester braid cover, ensures robust performance in demanding environments.

With a hose I.D. of 0.62 inches and O.D. of 1.08 inches, this hose features premium abrasion resistance and a maximum operating pressure of up to 1500 PSI. The reinforced construction includes a single wire braid and polyester for added durability.

The minimum bend radius is 6.5 inches, and the impulse cycle life is rated at 150,000 cycles, making it reliable for various hydraulic applications. The temperature range spans from -55° to +300°, with a maximum of +250° for air applications.

Suitable for vacuum service applications up to 28 inches Hg, the hose also features an ink wheel lay line style. Its conductivity is conductive, and it offers a minimum working temperature of -55°.
