EC215-12LRL

EATON 100R2AT HOSE

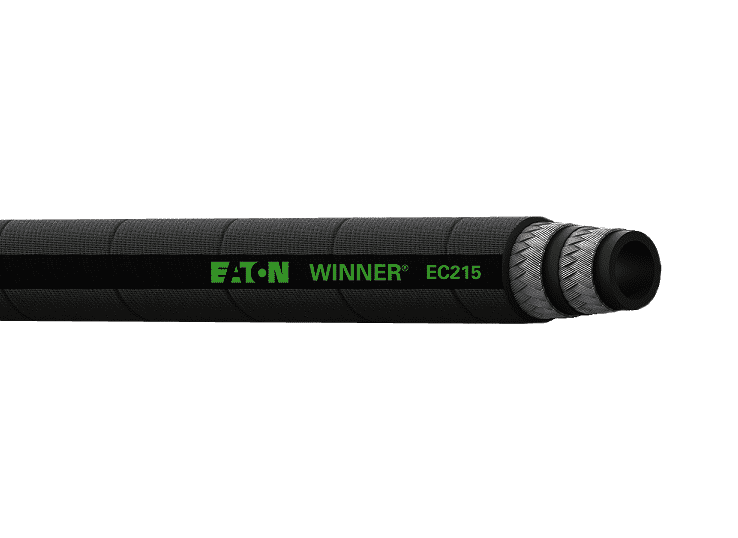

Designed for demanding hydraulic system services the Winner by Danfoss / Eaton EC215 Series Rubber Hydraulic Braided Hose is constructed with double wire braid reinforcement and a synthetic rubber tube. It is capable of handling high-pressure applications up to 3125 PSI and its black synthetic rubber cover is MSHA approved for abrasion resistance.

The hose with a 0.75-inch inner diameter and a 1.09-inch outer diameter is highly suitable for various industrial applications. It ensures reliable performance across a temperature range of -40°F to +212°F and has a minimum bend radius of 4.72 inches providing flexibility during installation. The hose adheres to EN857 2SC and SAE 100R16 performance standards making it ideal for challenging environments.

Featuring a 2-ply braid and transfer tape lay line style it offers enhanced structural integrity. Embossed laylines facilitate easy identification and ensure proper installation.
